TandemHeart® System with Escort Controller

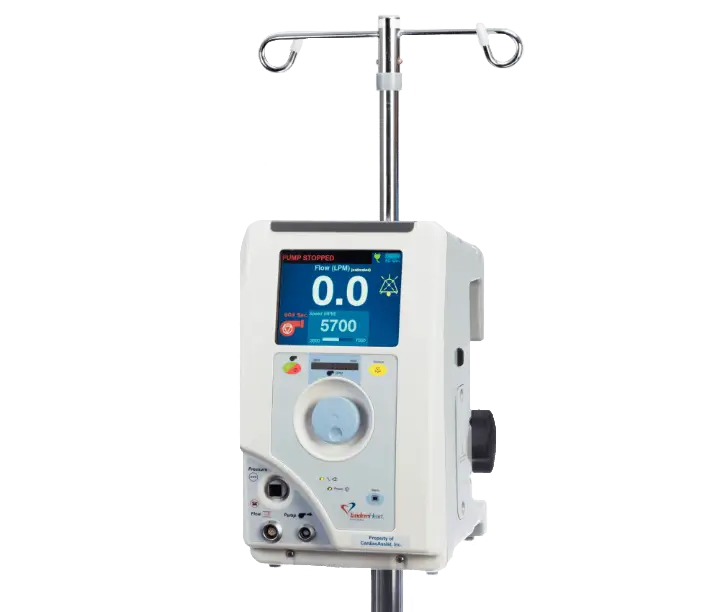

Escort Controller with Active Screen on an IV Pole

TandemHeart Escort

The TandemHeart Escort Controller powers the TandemHeart Pump.

The 21-pound Escort Controller can be mounted at bedside, on an IV pole or on a tabletop. It is intended primarily for AC power use but has enough battery back-up power for an hour of operation. It can be used with all four legacy procedure kits.

The TandemHeart pump is a fully integrated non-pulsatile centrifugal pump. It is compatible with the full line of ProtekSolo and ProtekDuo cannulae.

Technical Features: Escort Controller
Dimensions

H 38.10 cm (15 in)

W 25.15 cm (9.9 in)

D 25.91 cm (10.2 in)
Weight 21 pounds
Mobility Options IV pole clamp
Interface Multilevel GUI
Alarms Single visual and audio indication
Power Source AV power with internal lithium ion battery
Technical Features: TandemHeart Pump
Flow Up to 5 LPM
Speed 2,500-7.500 RPMs
Max Pressure 435 mmHg at 7,500 RPM
Bearing Hydrodynamic (fluid) bearing
Pump Body Priming Volume 12 mL
LifeSparc Device & Pump with Hand Holding the Controller
Need an upgrade?

LifeSPARC® System and Kits

Upgrade to our next generation system for temporary cardiopulmonary bypass procedures. The controller is more compact and portable and the pump more powerful than the Escort Controller & TandemHeart Pump.

LifeSPARC System
