TandemLung® Oxygenator

Hollow fiber oxygenator for faster and more accessible ECLS.

Hand Holding TandemLung Oxygenator Device

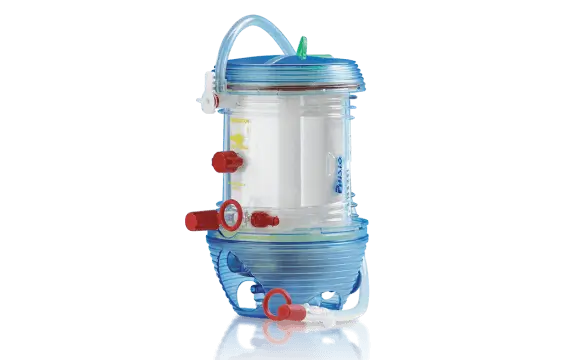

TandemLung Oxygenator

The TandemLung oxygenator was developed to make ECLS faster and more accessible with a design optimized for simplicity and performance. Its low priming volume and patented radial flow technology allow the device to be deployed quickly to protect patients from the negative effects of diminished cardiac or respiratory function.

TandemLung uses advanced polymethylpentene (PMP) fibers to transfer oxygen into the blood for patients requiring cardiac or respiratory support. It is intended for use in adult patients for extracorporeal circulation during cardiopulmonary bypass for up to 6 hours.

Technical Features

Recommended maximum blood flow 5.4 l/m
Priming volume <225 ml
Membrane surface area 1.8 m2
Maximum pressure 500 mmHG
Maximum gas flow rate 15 l/m
Blood inlet and outlet 3/8 in
Gas inlet 1/4 in
Oxygenation fibers Polymethylpentene hollow fiber
Heat exchanger type No need for heater/cooler because of small circuit size
