LifeSPARC™

LIfeSparc Controller on an IV Pole
What's Included

LifeSPARC System Components

Controller
Streamlined and Portable

The lightweight controller features four simple screens and visual and audio alarms. It can be mounted to an IV pole or removed from the docking station for in-hospital transport.

Controller

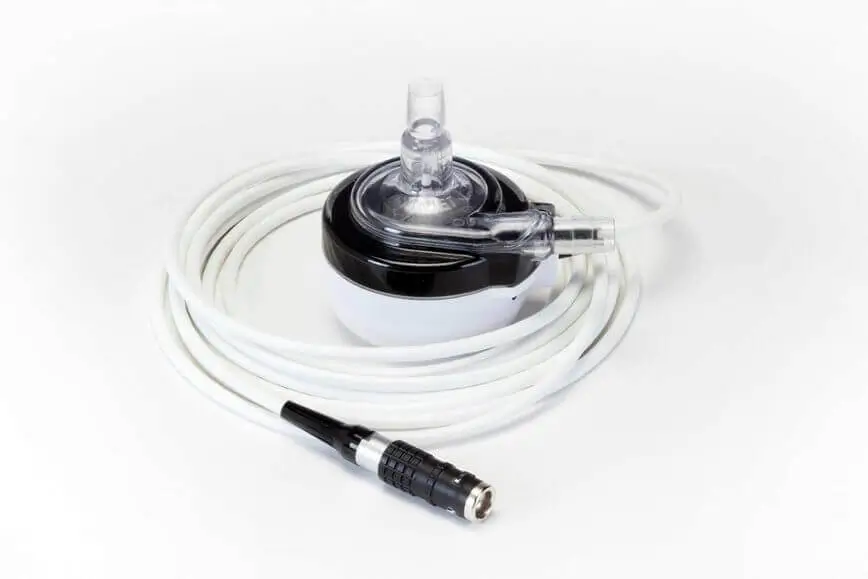

Pump
Simplified Patient Management

The system features the world’s only sterile on-patient pump, which reduces circuit surface area to decrease inflammatory response and eliminate the need for a heater/cooler.

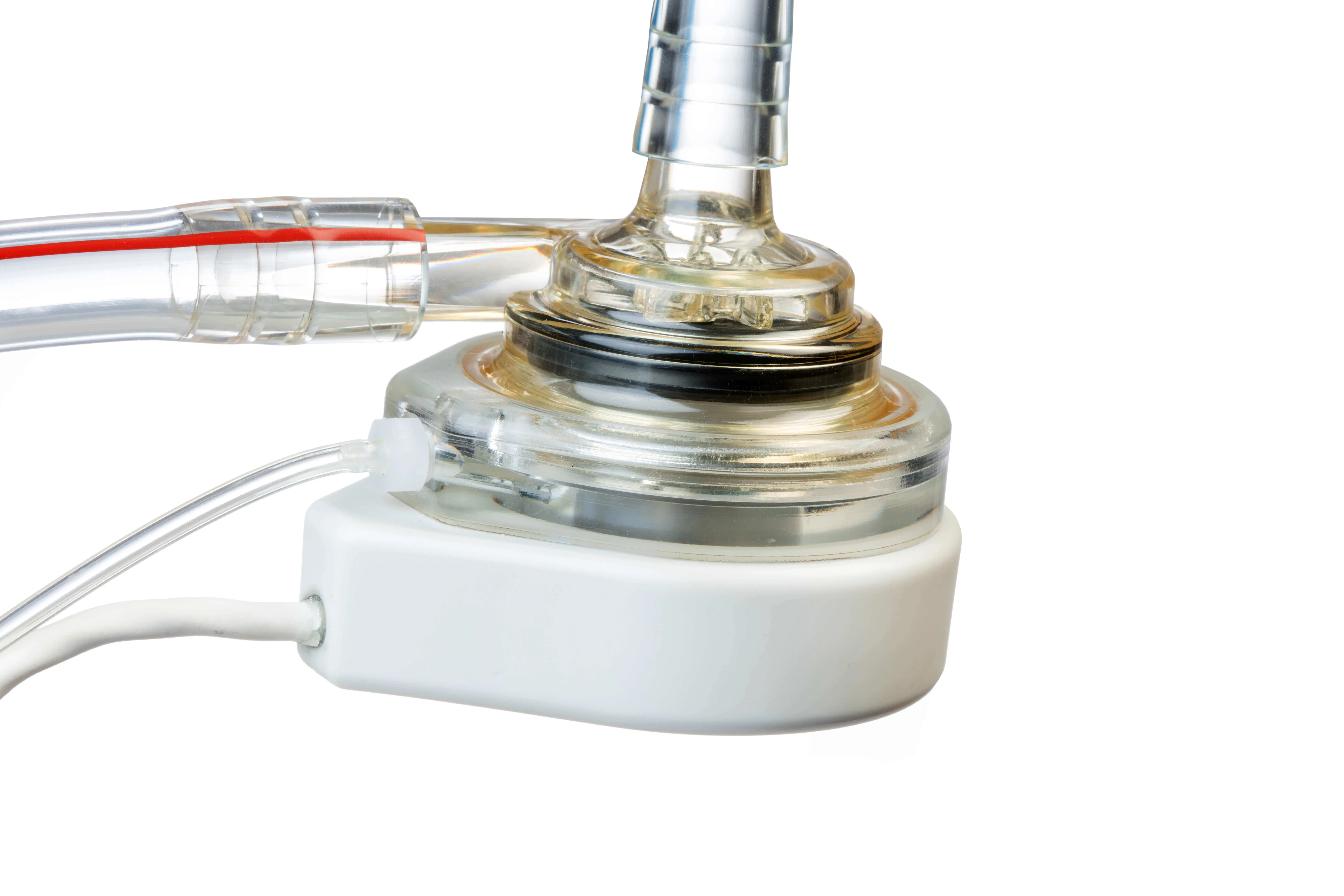

LifeSPARC pump in gloved hand
Priming Tray
Rapid Initiation of Support

The unique sterile priming basin uses gravity for a rapid, repeatable priming process. This plug-and-play design allows the system to be primed within 5 minutes.

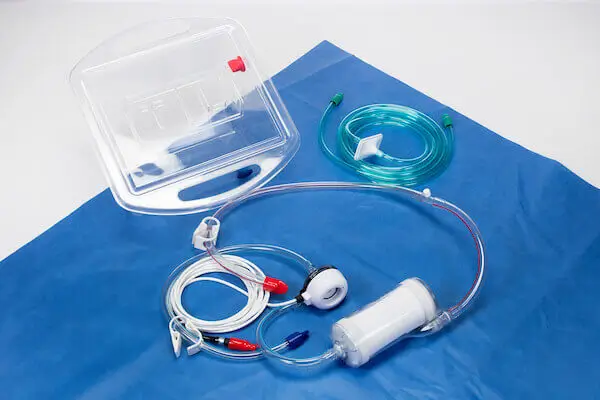

Priming tray with saline side view
LifeSPARC Controller
Technical Features
DIMENSIONS

H 30.48 cm (12 in)

W 21.59 cm (8.5 in)

D 20.32 cm (8 in)
WEIGHT 16.5 lbs. (7.48 kg)
INTERFACE Four loop panel GUI
ALARMS Mulitple visual and audio indications
POWER SOURCE

AC power (docking station)

Removable, rechargeable Lithium ion batteries
LifeSPARC Pump
Technical Features
Flow

5 LPM percutaneous

8 LPM surgical
Speed 2,000 - 7,500 RPMs
Max Pressure  600 mmHg at 7,500 RPM
Bearing Magnetic pivot bearing
Pump Body Priming Volume  16 mL

LifeSPARC Procedure Kits

The four ready-to-deploy kits are designed to take the complexity out of emergent rescue. They are turn-key tools that support a variety of cannulation strategies.
